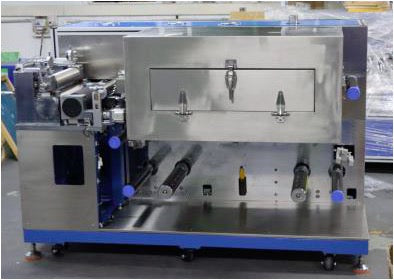

Intermittent experimental coater is a three-roll transfer coater, which can be used for continuous and intermittent coating and is convenient for surface coating on various substrates. Especially used in the lithium-ion battery industry, the equipment is convenient for researchers to use, while meeting the requirements of coating accuracy and consistency set by production design, excellent drying effect, is the ideal choice for lithium-ion batteries, supercapacitors, nickel batteries and other secondary battery research and development and pilot line.
Key Specs:
Coating mode: intermittent coating, continuous coating; guide roll spoke width: 230mm
Coating width:Max300mm.
Mechanical speed:200~900mm/min.
Coating accuracy: better than ±3um (edge error ±5um) coating thickness: depending on the slurry to determine, 40~300um winding and unwinding diameter (Max): 250mm winding accuracy: ±0.5mm
Tension control: Max60N (adjustable) micrometer display accuracy: 1μm
Drying temperature: room temperature ~ 120 ℃ adjustable drying unit: standard hot air drying compressed air: 0.5 ~ 0.7Mpa power supply: AC220V/50Hz maximum power: 5kW
Overall dimensions:L1800xW1200xH1200mm;
Weight:about 800kg
