Lithium iron phosphate (LFP)

1kg, powder form.

CAS Number: 15365-14-7

Lithium iron phosphate (LiFePO₄), also known as LFP, is a cathode material used in lithium ion (Li-ion) batteries. Its primary applications are electric vehicles (EV) and distributed energy storage. The anodes are generally made of carbon, such as natural graphite and  mesocarbon microbeads(MCMB)synthetic graphite

LFP powder is coated by carbon for use in lithium ion batteries as the cathode material. Carbon-coated lithium iron phosphate (C-LiFePO₄) powders have been produced at the commercial scale by a controlled solid-state reaction method.

Specifications:

• Molecular Formula: LiFePO₄
• Formula Weight: 157.76 g/mol
• Chemical Name: Lithium Iron Phosphate
• Particle size distribution:
• D10: 0.5 µm
• D50: 1.3 µm
• D90: 3.5 µm
• Chemical composition (wt%)

• Tap density: 0.8 +/- 0.2 g/cm³
• BET Specific Surface Area (SSA): 12 +/- 2 m²/g (typical value 12.3 m²/g)
• pH = 9.5 +/- 1.0
• Moisture: < 1000 ppm (typical value ~700 ppm)
• Refractive index n: 1.65 - 1.70
• Electrical resistance: <100 Ohm.cm (typical value 7.23)

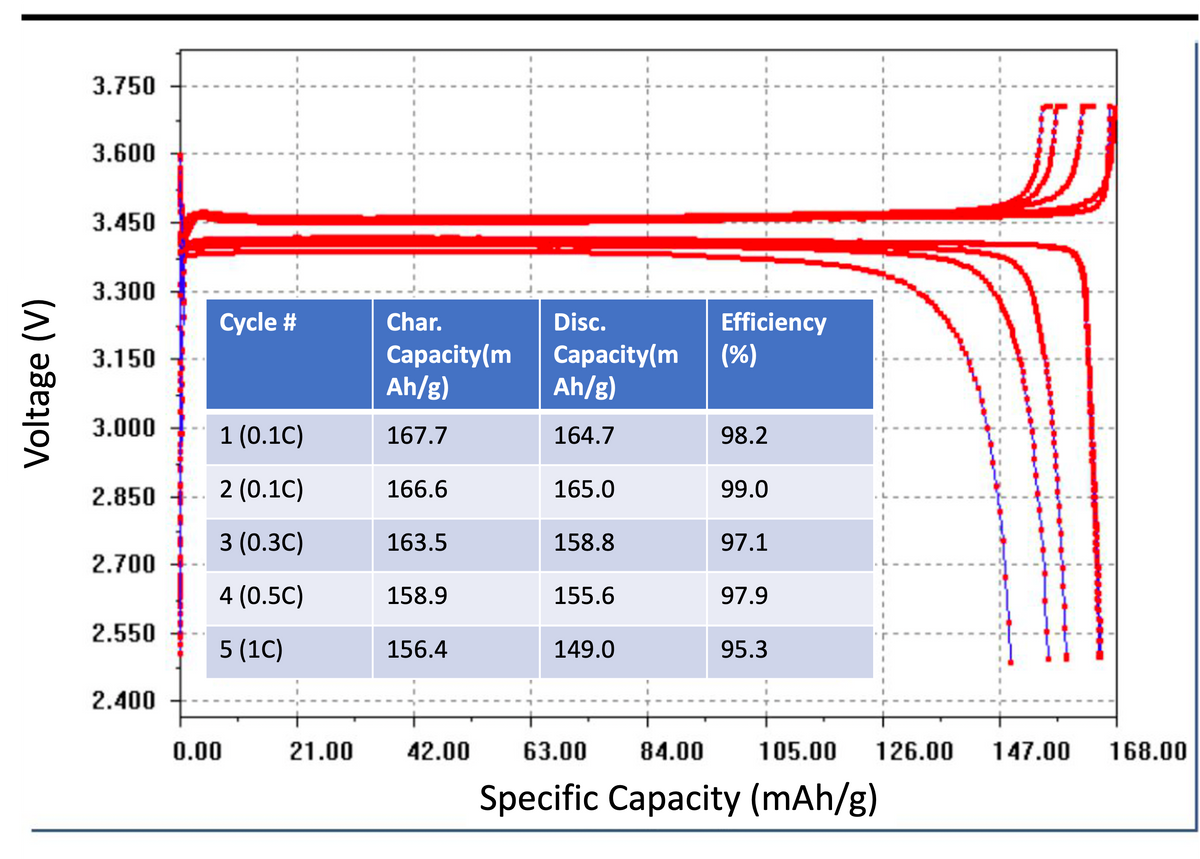

• First discharge efficiency (0.1C): >95% (typical value 98%)
• First capacity (0.1C): >154 mAh/g
• Carbon coated on the surface.

Physical and chemical properties of LFP batteries:
LFP batteries have an operating voltage of 3.3V, energy density of 170 mAh/g, high power density, long cycle life and stability at high temperatures.
