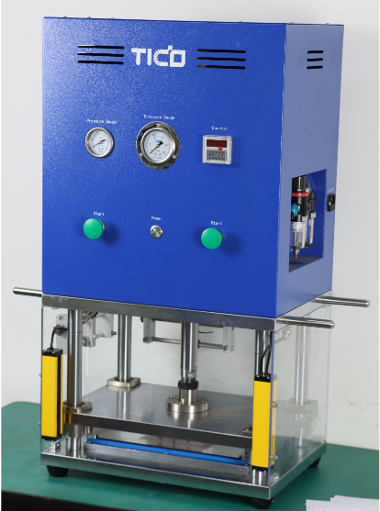

A high-quality pouch cell case/cup forming machine for lithium battery R&D. This forming machine is designed for pouch cell using aluminum laminated films. The simple spring mold with a smaller size makes it suitable for lab research. This machine has four guide column structures for smooth sliding up and down. The stretching depth can be adjusted by simply changing the mold.
Key Specs:
Power supply: 220V amp 50Hz; power: 100W.
Compressed air: 0.5Mpa~0.8Mpa maximum punching size: 280x180mm.
with punching depth ≤6mm
(can adjust based on the customer's request, maximum punching size is not limited); booster cylinder:3T.
Cutting accuracy: ±0.1mm.
Overall dimensions: L550xW455xH900mm
Equipment weight: 180kg
